Ford Mustang 2.3 Turbo Exhaust Manifold Gasket

Ford Mustang 2.3 engine, at a glance from their cylinder head gasket, it may looks similar to the Mazda L3 series type of gasket, but their exhaust manifold gasket is totally a different from the Mazda L3 version of gasket, this piece of gasket some may call it as turbocharger gasket for Ford Mustang, we think it is still more accurately is an exhaust manifold gasket, which the manifold photo below show it may connected to a turbocharger at the other side.





Proton X50 Cylinder Block Engine Block Plug

There is a big plug in the Proton X50 engine block, this plug looks like those Cam Plug with part number start with RCA mmXmm but this one looks much more bigger,

Below are the photo of the parts which is already broken taken out from the engine, and the bottom photo show the new parts from the other side of the part.



Toyota Hilux GUN125 GUN126 Valve Seal

Toyota Hilux GUN125 GUN126 under engine code 1GD-FTV and 2GD-FTV have a very special type design of valve seal, this valve seal with OEM part number 90913-T2006, its dimension is not like those conventional Toyota valve seal, it is much taller like what shown in the above photo.

Shopee


Toyota 1TR-FE and 2TR-FE Rocker Cover Gasket type

Toyota 1TR-FE and 2TR-FE engine which is popular for model like Innova, Forturner and HiAce, already have 2 type of version on their rocker cover zone.

From the above photo which showing the diagram of the old and new version rocker cover of 1TR-FE and 2TR-FE, you may observe that the rocker cover gasket for the old version is design as such it separated with the plug seal while the newer version the plug seal is attached to the rocker cover gasket.

For the newer version rocker cover, you may found there are additional parts at the bigger circle at the above photo, which it may need the gasket show in the photo at the bottom part of this post, it call camshaft bearing seal according to the catalog.

1. Older version rocker cover gasket part number 11213-75040, 11213-0C010

2. Older version plug seal part number 11214-75040, 11214-0C010

3. Newer version rocker cover gasket part number 11213-75050

4. Newer version camshaft bearing seal 3 difference seal part number 11159-75010, 1115A-75010, 1115B-75010



Nissan Cefiro A33 2.0 Intake Manifold, EGR Guide Tube and Throttle Body Gasket

Nissan Cefiro A33 2.0 model with VQ20DE engine have some interesting rubber gasket at their intake manifold area.

Apart from the 2 pieces metal sheet of intake manifold gasket, there are 3 pieces rubber gasket at the intake surger manifold, 1 piece of the EGR Guide Tube gasket and 1 piece of Throttle Body gasket, this 5 pieces of gasket normally will need to replace all together after dismantling the intake manifold assembly of the engine.



Honda Civic Type-R Gasket Kit

Honda Civic Type R for generation IX and X, is install with the K20C1 and K20C3 engine, and some may call it as FK2 or FK8 model.

For their genuine parts part number, mostly is using "RPY" in the center of their part number, like the head gasket it is 122251-RPY-G02, rocker cover gasket is 12341-RPY-G01 and the gasket kit with part number of 06110-RPY-G02.





Mitsubishi Triton 3.2 4M41 Nozzle Seal

This 4 pieces of nozzle seal which found in Mitsubishi Triton 3.2 model under engine code 4M41 or 4M41T is not included in the overhaul gasket kit, below are the diagram on which the seal located, and the Mitsubishi OEM part number is ME203153.

It may call as Rocker Case Injector Tube Seal.

Shopee



Mazda Skyactiv Oil Control Valve Gasket

At the Mazda Skyactiv model rocker cover, no matter on the Mazda 2 1.5 , CX-5 2.0 or 2.5, as long as it is a Skyactiv version, there are one gasket which looks similar like a plug seal, but it isn't a plug seal for this engine, we may call it as oil control valve gasket.

This gasket OEM part number is PE01-10-2D5, actually is also very similar to the Mazda older model LF, L3 and L5 engine which carry OEM part number of L362-10-2D5, but L362-10-2D5 is slightly bigger than the PE01-10-2D5.



Toyota GR Yaris G16E-GTS

This is just sharing of the photo of the gasket kit for Toyota GR Yaris model under the engine code of G16E-GTS.


Suzuki Alto 1.0 K10B Intake Manifold and Throttle Body Gasket

It seems the Suzuki Alto 1.0 under K10B engine code also have 2 variant of intake manifold gasket, the photo shown the intake manifold gasket and throttle body gasket, may consider as the 2nd generation type of the K10B engine. Though there are one more layer which is using metal type of intake manifold gasket may be use in both generation of engine.


Nissan SK2F Rocker Cover Gasket and Plug Seal

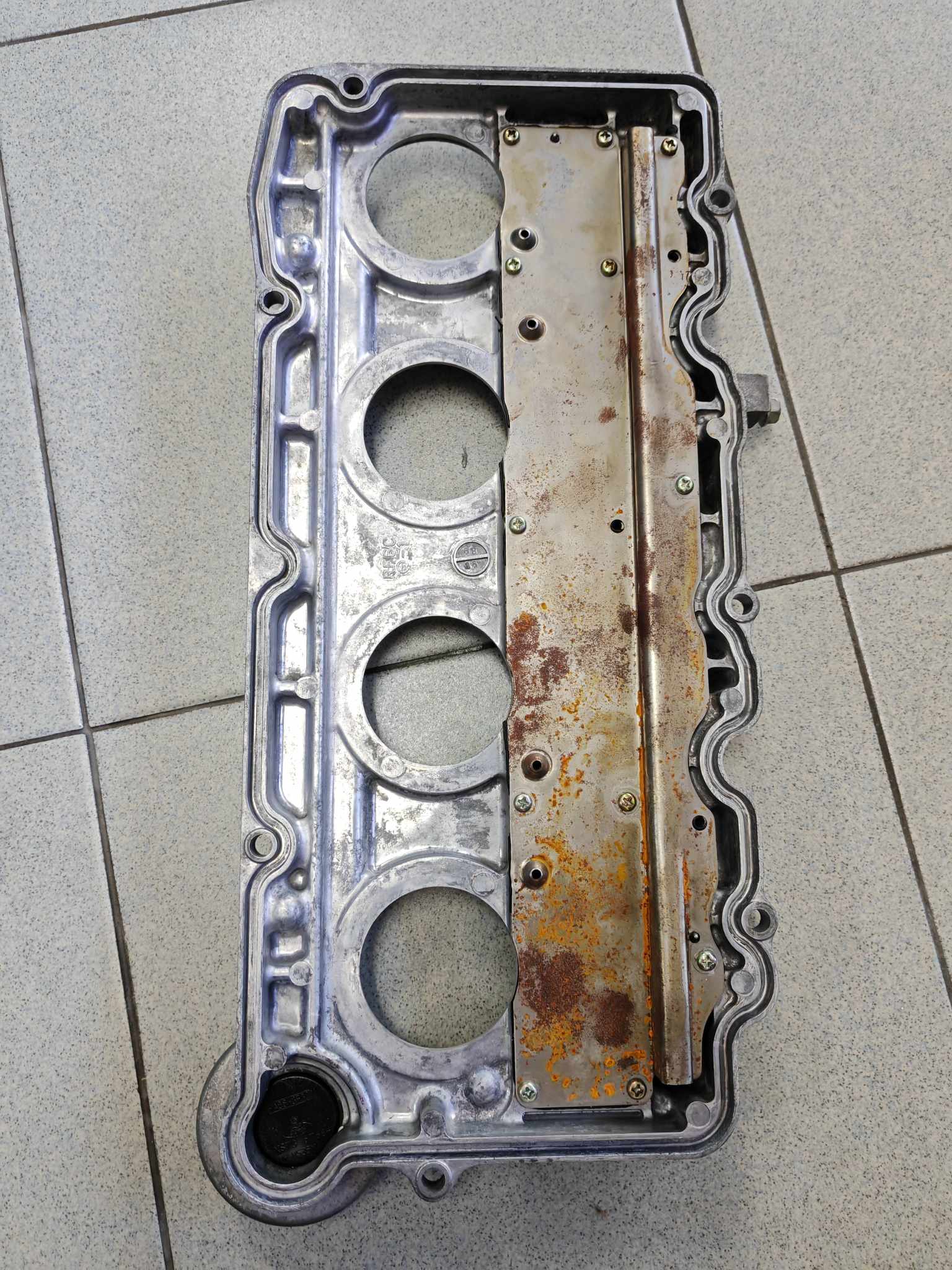

In our earlier post on the Mazda Bongo 2.2 rocker cover gasket that can found here, recently this engine is found in the Nissan SK2F model truck, apart from the rocker cover gasket, we found that interesting they have 4 big plug seal use on the rocker cover.

The plug seal with OEM part number RF5C-10-508, have the measurement about like 46mmX65mmX9mm/12mm, in the Drive2U website, we found that one technician is using the oil seal size of 45mmX65mmX10mm to replace the plug seal.

Since we don't have the stock for the plug seal, we will try to use their way to check it out if it is workable.



Honda City T9A, Jazz T5A, HRV T7A Timing Cover O-Ring

Is this o-ring looks special? It is found in the Honda L15B engine timing cover case,which currently use in model such as City T9A, Jazz T5A and HRV T7A, it is also found in the CRV 1.5 Turbo variant, anyone know what is the purpose to have a area design as such need to use an o-ring to seal it up?



Toyota IQ 1KR-FE Rocker Cover Gasket

The Toyota 1KR series of engine is quite interesting when you find more and more different type of rocker cover gasket design for each different model.

Basically 1KR series of engine have 1KR-FE, 1KR-DE and 1KR-VE of variant with DE and VE have it turbo version. 1KR-DE2 is a popular version for Perodua Axia model in Malaysia and 1KR-VET is the Perodua Ativa Turbo model.

The photo show a very special version for 1KR-FE rocker cover gasket which found in Toyota IQ, it may looks alike with other 1KR model of rocker cover gasket but having the most holes on it.


Toyota Camry 2.5 Camshaft Bearing Cap Oil Hole Gasket

Most of the Toyota modern rocker cover had design that as such have the camshaft bearing cap oil hole gasket on it, in this post we take a look at the type for engine code 2AR-FXE and 8AR-FTS, which it can be found in the Camry 2.5 model.

OEM part number 11159-36011, the location of the gasket to be install can be found in the below 2 photos.

https://shopee.com.my/product/573274253/23724249741/



Old version Hyundai Trajet Rocker Cover Gasket

Today let's have a look in an interesting rocker cover gasket from Korea Hyundai model, it is a gasket taken out from the Trajet model, in Malaysia market, if customer looking for Hyundai Trajet gasket, normally it is similar to the Hyundai Sonata 5 of gasket, but this time it caught us by surprise, the gasket is actually similar to the one in Naza Citra or Hyundai Elantra 1.8.

In the content of the top set gasket, all gasket are same except the rocker cover it give us some headache, I almost can't find any info on this rocker cover gasket info when I Googling around, until I change the searching direction by looking for the rocker cover itself, only then found that there are a type of aluminium type rocker cover for Hyundai Tiburon model, which it show the rocker cover and the gasket which is same to the used gasket.

It may be just the very first batch of this engine is using aluminium type of rocker cover and it change to plastic type rocker cover for the later version. At the time of writing, I still don't know what is the OEM part number for this rocker cover gasket, it will be nice if who know the part number can put a comment in this post.



BYD Atto 3 "Engine" bay

As my daily jobs dealing with engine gasket, any new car model that display in show at shopping mall will attract my attention to take a look at the car engine bay and imagine how will its combustion engine gasket looks like, recently found the BYD Atto 3 is show case in one of the Malaysia shopping mall, though I know that it is an EV, but still can't stop my curiosity to have a look at its "engine" bay, of course it don't have any engine in it, and gasket suppliers may need to start thinking for their future.
