Perodua Ativa Cylinder Head Gasket

Today have a chance to look at how the Perodua Ativa 1.0 Turbo Cylinder Head Gasket looks like, actually this piece of gasket is not taken out from the Perodua Ativa engine, it actually dismantle off from Toyota Tank, which carry the engine code of 1KR-VET shown in above engine plate, which is same with the Perodua Ativa engine code.

So what is the differences of this 1KR-VET head gasket with the 1KR-DE2 that use in Perodua Axia? So we put this 2 pieces of gasket side by side for comparison as shown like above photo.

Anyway, at the time of writing, we still didn't stock this cylinder head gasket, which carry part number of 11115-B1050.



Suzuki R06A Rocker Cover Gasket



Suzuki R06A engine seems not only using in the Suzuki model of vehicle, other than the Suzuki part number of 11189-50M00, you may found other 2 interchangeable part number, one under Nissan with part number of 13270-4A00G and another one under Mazda part number 1A10-10-235.

More info on the R06A engine can be found in Wikipedia link here.

Under this link, you may found that other than Suzuki, Mazda Flair and Scrum, Nissan NV100, you can find Mitsubishi Minicab and Town Box under the list, but still haven't get the Mitsubishi part number for this rocker cover in the website.

Nissan Fairlady 350Z Oil Filler Shroud Gasket

The oil cap on the Nissan Fairlady 350Z on the rocker cover have a very special filler shroud gasket, under the Nissan OEM number 13276-4P100, this gasket consider quite a big piece of rubber, but the place of this gasket located on the rocker cover seems is not for a function of prevent any oil leak, so I'm quite curious on what is the purpose and function of this gasket.



Subaru Forester XV Overhaul Gasket Kit

Subaru is making a come back to Malaysia passenger vehicle market with their XV and Forester model under the FB20A engine, under this engine code, the overhaul gasket kit content component seem to be have a lesser count when compare to the EJ20 series of engine whereby for some EJ20 model the overhaul gasket kit may have up to 60 over part number of component, and the FB20A consider only have half of the count.



Perodua Bezza 1.3 Rover Cover Bush

Perodua Bezza 1.3 with 1NR-VE engine, which the rocker cover may have similar design with the 2NR series for the Toyota Vios, the rocker cover tightening position have the rocker cover bush like some other rocker cover design, photo above show that the area of the screw tightening area have oil leak which may be cause by the hardening of the bush.



The above show that the bush that taken out from the rocker cover, but interestingly, apart from the bush, there are one more washer at the top of the bush.

Above photo show the bush at it obverse and the reverse side, and the washer which will be put at the top of the bush.

And this how it looks like in the obverse and reverse side of the bush after we put the washer on top of the bush.


Perodua Bezza 1.0 Intake Manifold Gasket

Perodua Bezza 1.0 is using the Toyota 1KR-VE engine, unlike the Perodua Axia 1.0, which is using the 1KR-DE2 engine, although some of their engine is similar between this 2 engine, the intake manifold for the 1KR-VE is design as such need to use 2 pieces of gasket, one layer is the rubber o-ring type and another one is the thin metal sheet type of gasket.



Toyota Camry 2.5 Intake Manifold Gasket

Toyota Camry 2.5 Hybrid model in Malaysia is using the 2AR-FE engine, you may found the intake manifold gasket which is with viton rubber o-ring type, have some special design difference from the conventional intake o-ring, each port of the intake hole, they had design with 3 small rectangular shape inside each big hole, so what is the purpose on this design? Is this design have anything to do due to the hybrid function that this engine need to deal with?



Perodua Bezza Oil Pan Oil Pump O-Ring

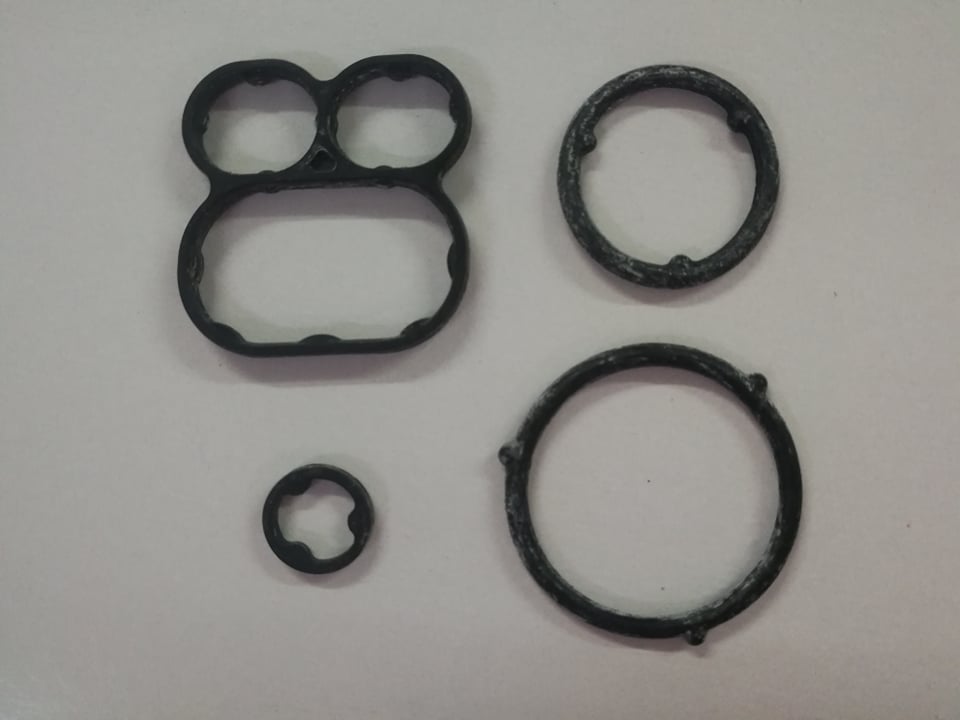

There are few special O-ring can be found in the Perodua Bezza oil pan and oil pump area, above are the diagram for the bottom area for the 1NR-FE engine, the 3 marked number, which is with part number 90301-T0055, 90301-T0057 and 90301-T0059 respectively, the O-ring is shown as in below photo which you can see that it is not just a normal round O-ring but with some extra dot rubber either pointer outward or inward on the O-ring.

The top left seal in the below photo is under part number 11159-0Y020 which is call camshaft bearing oil hole seal at the head gasket area of this 1NR-FE engine.



Subaru Exhaust Manifold Gasket

Subaru exhaust manifold gasket under part number 14038-AA000 is the most commonly use in almost all Subaru model, ranging from all the EJ series model, until the current FA and FB series model, all the boxer type of engine is using the same exhaust manifold gasket, the different may be the earlier model in EJ series is using the asbestos type of material, and it already improve to use the metal type material from 2002 onwards.


2 Types of Toyota Innova Rocker Cover Gasket

Toyota Innova with 1TR-FE engine and the Fortuner with the 2TR-FE engine have 2 types of rocker cover gasket, the above photo is for the model before 2015 which the rocker cover gasket and the plug seal is separate between them and for the model after 2015, which is like the photo below, the design is change to the plug seal is connected together with the rocker cover gasket.





Toyota Vios NZE16# Rocker Cover Gasket

This Toyota Vios rocker cover gasket which is also under 1NZ-FE engine seems a bit different from the very first batch of Vios model, with part number 11213-21020, the area which connect the rocker cover outer part with the centre plug seal part have a C or U shape rubber connect to it, unlike the 11213-21011 the connection is just a straight forward connection to the plug seal.

As both engine code is under 1NZ-FE, to better differentiate the 2 type of rocker cover gasket, may be the older one is use on Vios NCP# series and the newer version is for Vios NZE# series.



Nissan Cefiro PA33 Intake Adaptor Gasket

Nissan Cefiro PA33 with VQ25DD engine is not a common engine found in Malaysia market, the intake adaptor gasket for this engine is using a bit of different material design compare to other VQ series engine intake adaptor gasket.

Due to the material is not the simple o-ring type design or with thin metal sheet gasket of design, the pricing for this piece of gasket is much higher compare to others.

For a better close view on this gasket, we had make a video which can be found in the YouTube link here.

By the way the OEM Part Number for this gasket is 14032-2Y500



Isuzu D-Max 1.9 Cylinder Head Gasket

Today got a chance to touched the physical stock of this Isuzu D-Max 1.9 Cylinder Head Gasket, with the engine code RZ4E-TC, it also known as Blue Power engine, which there have 2 fun facts according to the Drive Save and Fast website.

1. The name of this new engine, RZ4E, represents a change in Isuzu’s engine naming convention. Previous Isuzu engines would often use a digit to indicate number of cylinders, followed by an alphabet or two to indicate engine family. The 4 seems to be relocated behind the engine family designation..
2. ‘Blue’ is commonly used in marketing spiel to describe modern, efficient diesel engines. Beyond Isuzu, at least two other brands use ‘Blue’ in the names of their diesel tech. The Mr. Tateyama confirms the colour has nothing to do with anything. I suppose Green was too busy being associated with electric and petrol powertrains.

Other than the fun facts as shown above, other interesting fact can be found at the DSF website link here.



Toyota Celica 2ZZ-GE Timing Cover Gasket

Toyota Celica with engine 2ZZ-GE, their timing cover is design as such having 2 pieces of rubber gasket, which is under OEM part number 11328-88600 and 11329-88600, other than this 2 pieces gasket need to be replace when found there are oil leaking at the timing cover side, a piece of timing oil seal is best to be replace as well.

In Malaysia, other than the Toyota Celica model that using this 2ZZ-GE engine, there are also one Lotus sports car model is using this engine.



Honda Accord T2A Cylinder Head Gasket

Honda Accord T2A in Malaysia market which is using the engine code of K24W series of engine, is consider an Earth Dream Technology engine from Honda, in our earlier post we introduce their rocker cover gasket and plug seal, which the plug seal itself have the special metal housing, in this post, let's have a look on the cylinder head gasket.

Some of the other model using this engine is like the Honda Odyssey or Accord under CR1, CR2 and CR3 model.



Nissan RB25DET Turbocharger Gasket

Before that having some top set gasket for Nissan Skyline RB25DET, but some customer is looking for some individual content in the gasket set, and had been taking out from the set to service customer who really need it, so this time we get some of the gasket especially the turbocharger area, some are need to re-pack it back to the gasket kit, of course now we have extra pieces to be sell in individual item.


Proton X70 Overhaul Gasket Kit Set

Today get the opportunity to unbox a China made overhaul gasket kit set for Geely Boyue 1.8 and have a sneak peek on how the gasket looks like.

This Geely engine code JLE-4G18TD model gasket, is also use in the Malaysia national car Proton X70, Proton X70 is the first SUV develop by national car manufacturer Proton after Geely acquire 49% shareholding in Proton.

It is known that currently the genuine parts for Proton X70 can only get at Proton 3S centre, even the Proton authorised part dealer can't sell the Proton X70 parts. So, for us to get a Proton X70 gasket kit for own reference, we either buy from Proton 3S centre or we can buy the Geely Boyue gasket kit from China. From the photo, you know that we choose to use the later option.

Video of unboxing the gasket can be found in the link here.





Toyota Supra 2JZ-GTE Exhaust Manifold Gasket

Toyota Supra 2JZ-GTE engine is an inline straight 6 cylinder engine, at the exhaust manifold area, the manifold gasket is split into 2 pieces, and this 2 pieces is different in design, the manifold gasket is manufactured as multi layer steel (MLS) style of gasket, with total 5 layer on each piece, making the thickness of the gasket become 1.5mm.

The photo show the design of the gasket, the first 2 on top is under OEM part number 17198-46010 with the front and back view of the gasket, and the other 2 at the bottom is under OEM part number 17173-46010 with the front and back view of the gasket.


Mitsubishi Grandis NA4W Top Set Gasket

Mitsubishi Grandis NA4W is a seven-seat MPV built by Mitsubishi Motors to replace their Chariot/Space Wagon/Nimbus line. It was launched on 14 May 2003 and sold in Japan, Asia, Europe, Oceania, Mexico, Honduras, Jamaica and South America.

Engine available were a 2.4-litre four-cylinder with engine code 4G69, there are actually another type of engine, 2.0-litre turbodiesel engine which is sourced from Volkswagen.


Toyota HDJ101 Intake Manifold Washer/Bush

When perform Toyota Landcruiser HZJ80, HDJ81 and HDJ101 intake manifold gasket replacement, one may found that they have the special washer or bush need to be replace also, which is similar to some rocker cover gasket replacement, the photo above taken from a discussion Forum, which showing the HZJ80 and HDJ101 12 valve,  which using 12 washers for each engine, for the HDJ81 and HDJ101 24 valve,  the intake manifold gasket is using 2 pieces separated with 6 holes in each pieces, which the washer is using 8 pieces for each engine, as shown in the photo below.



Chery QQ 1.1 SQR472 Gasket Kit

Today this post is to share a very interesting China made engine SQR472 which is made for Chery QQ 1.1 model, take a closer look at the head gasket, you may find it seems familiar but it should be a 3 cylinder head gasket.

Yes, it is looks a like of what the Daihatsu EJ-DE engine which is use in Perodua Kenari Kelisa in Malaysia market, but EJ-DE is 3 cylinder but Chery had modified a bit by adding an extra cylinder for this engine.

You will find that the oil pump and waterpump gasket is similar to the EJ-DE gasket, even for the rocker cover gasket, it is similar design with longer dimension to suit for the 4 cylinder head length.

Actually Chery have another model call SQR372 with 3 cylinder engine which should be same or similar to the EJ-DE type of engine, the number in engine SQR472, which 4 may stand for 4 cylinder and 72 stand for engine piston bore diameter, same explanation may applied for SQR372.

As the SQR472 is the China develop engine, their OEM engine parts should be all made in China with no other country will manufacture it, unless the common interchangeable items with the EJ-DE engine.


Toyota GR Yaris G16E-GTS Engine

The Toyota GR Yaris had been launched in Malaysia on December 2020, the introduction for this vehicle can be found in the Paultan website here.

What making it interesting is the engine they use, firstly, the engine code is G16E-GTS, which is rather special for Toyota when their traditional engine code is start with numeric, and it is a 3 cylinders turbocharged engine, the Wikipedia introduce the engine with the link here.

And with the rather new engine, it is quite impossible to find the gasket info for now, but in the Toyota-club.net website we can get some idea on how the gasket looks like with some of the diagram they share in their website here.



Ford Ranger T8 2.0 EcoBlue Diesel Engine Gasket Kit

In this post, just to share another gasket parts that is not develop in Japan, Malaysia have the new Ford Ranger T8 2.0 BiTurbo which it is also call an EcoBlue Diesel engine, same as the previous Ford Ranger T6 and T7 2.2 and 3.2 model, it is the Ford engine that didn't involve Mazda like the earlier WL and WE engine model, we actually can't get any info from Japan gasket manufacturer.

From the Google search, beside the Ford original part, we found that Victor Reinz gasket also have this gasket info.

This post we sharing the photo of head gasket, the flywheel oil seal with the metal housing, their rocker cover gasket and a photo of the engine overhaul kit with the piston and timing belt kit in it.

The previous T6 and T7 model which we found the Ford original parts label is printing "Made in USA" on it, we found this EcoBlue Diesel model, the Ford original parts label for the cylinder head gasket is printing "Made in Germany", is it that Victor Reinz is the original gasket manufacturer for this model since Victor Reinz is Germany brand gasket manufacturer.
